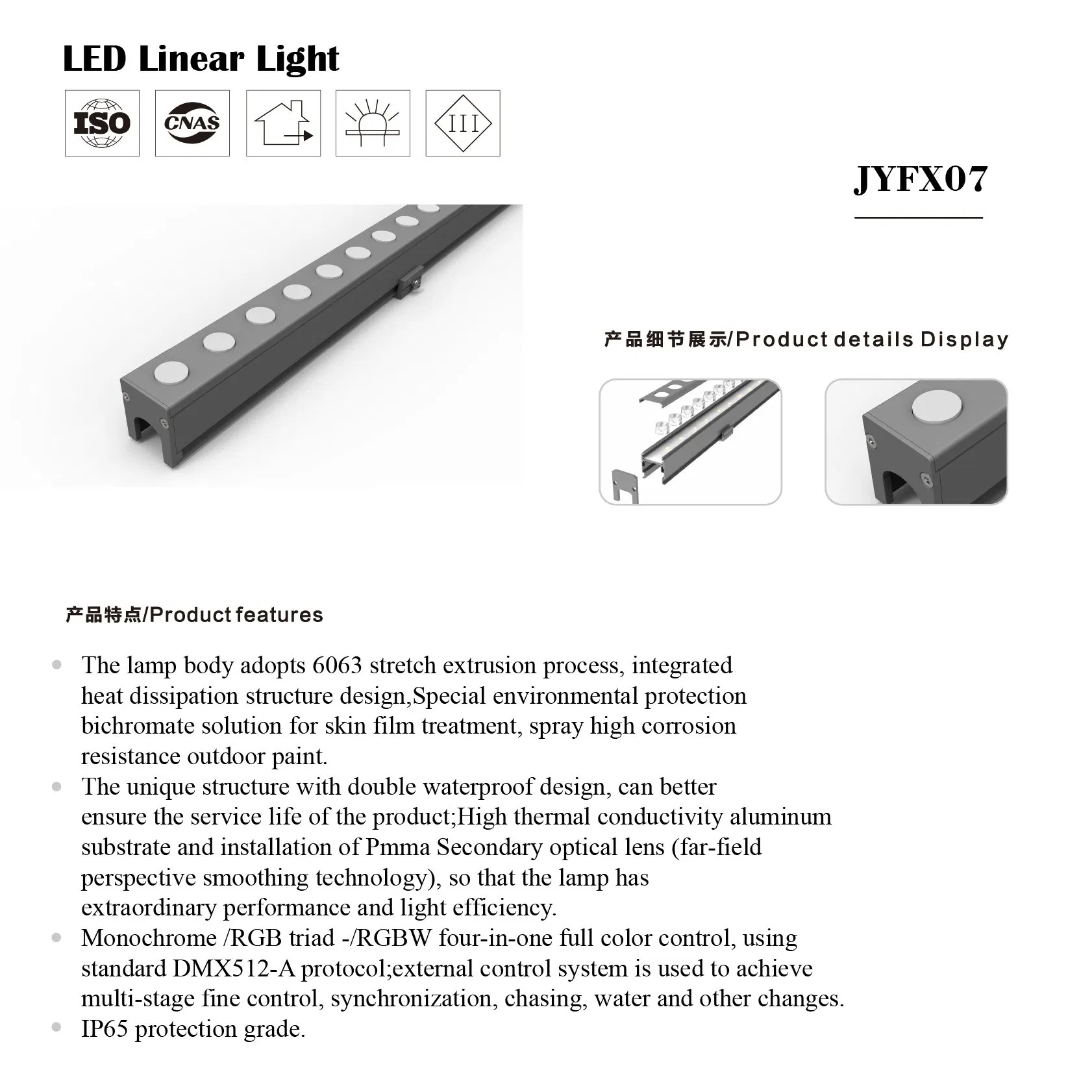

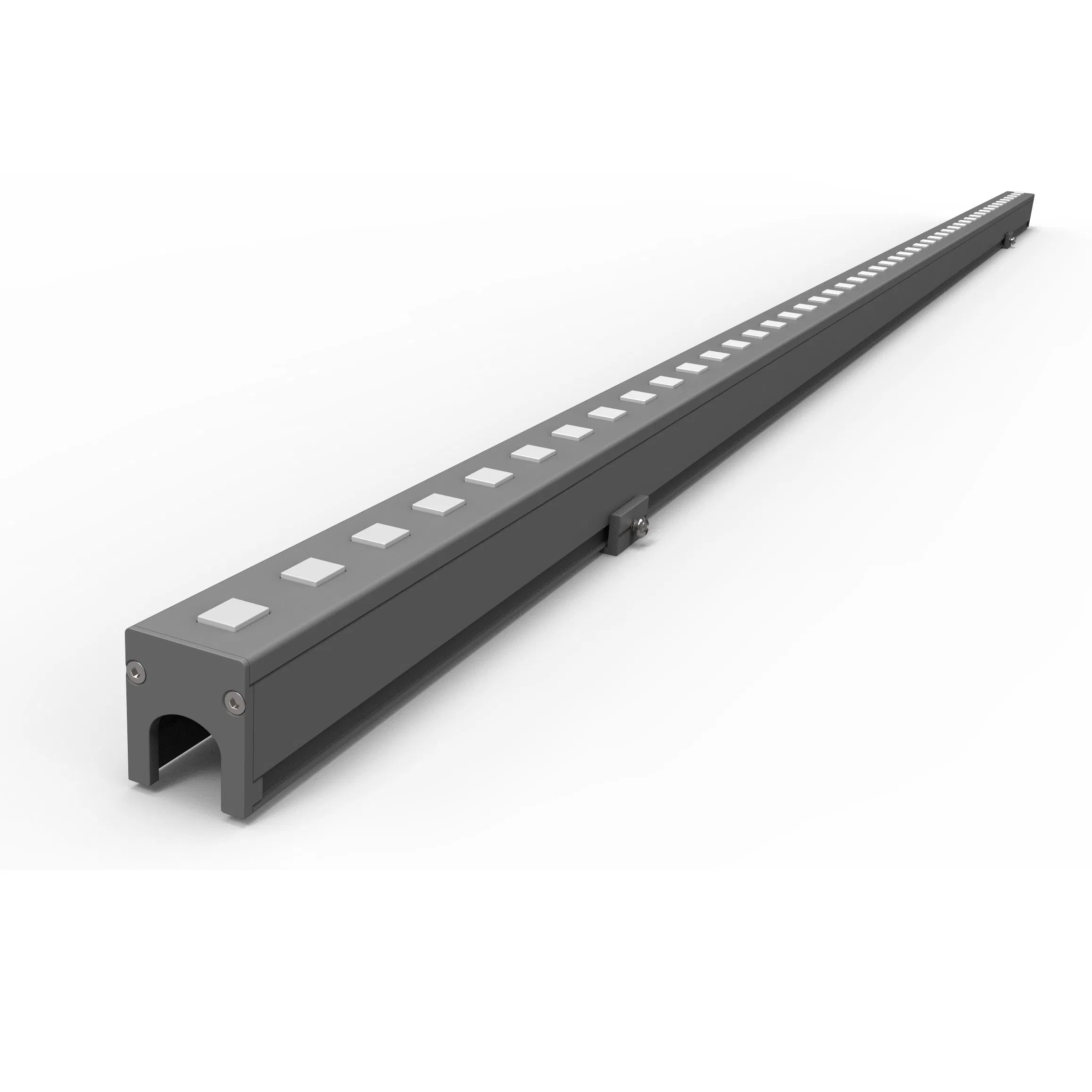

DMX512-A Protocol DC24V IP65 Jyfx07 Anti Glare LED Wall Washer
12W 1800K-10000K Option
15W 1800K-10000K Optional
15W RGB
15W RGBW

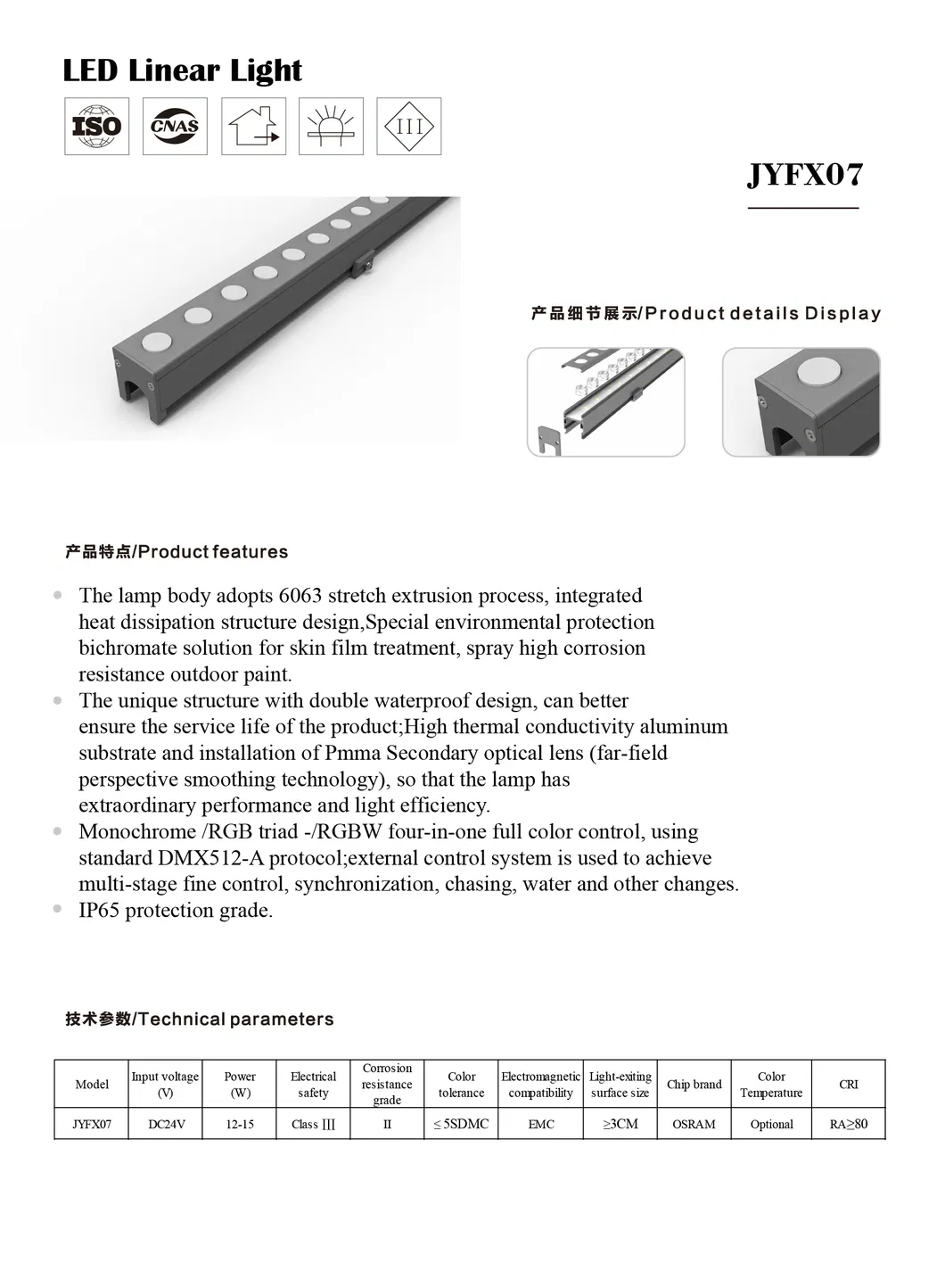

Technical Specifications
Working VoltageDC24V
Shell MaterialStretch Aluminum
LED ChipsSMD2835 or 5050
Shell ColorCan be sprayed according to the curtain wall
Protection LevelIP65
LED Lifetime50000Hr
Control ModeMonochrome constant brightness or DMX512

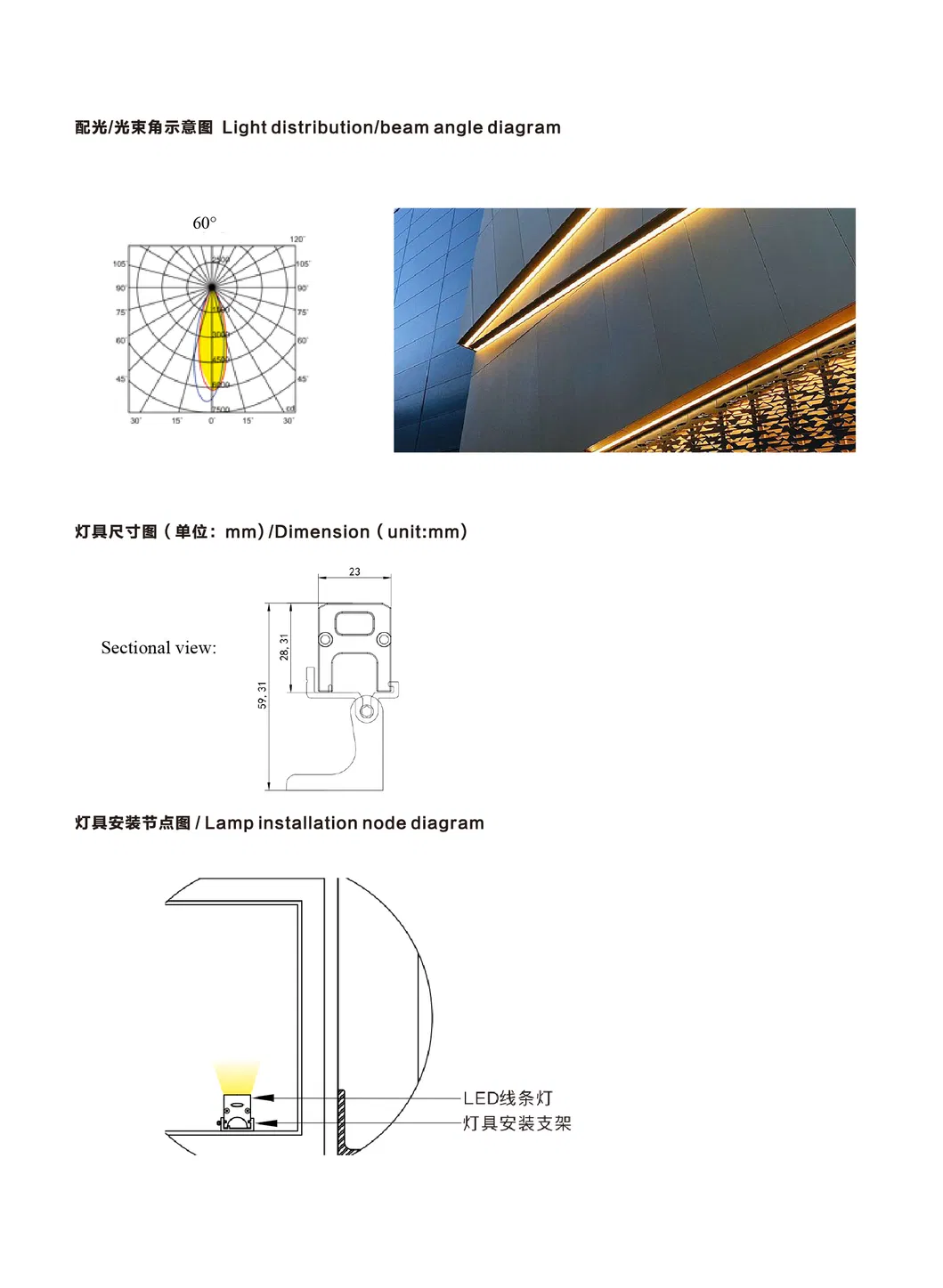

Beam Angle15°, 30°, 60°, 120°, 25*45°, 10*60° and more
Ambient Temperature-35ºC ± 50ºC
Outgoing MethodCenter outgoing line
Line LengthDocking 106cm

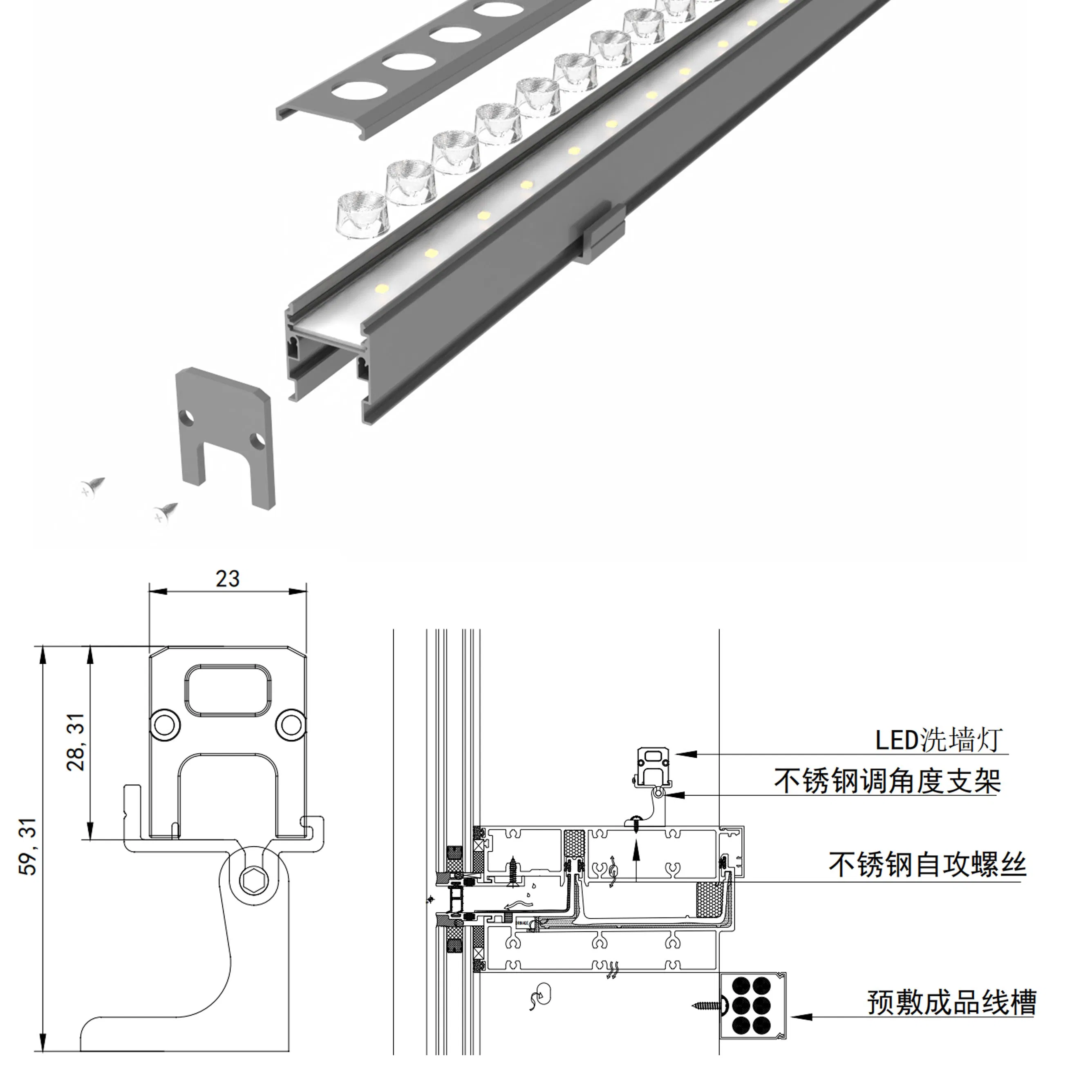

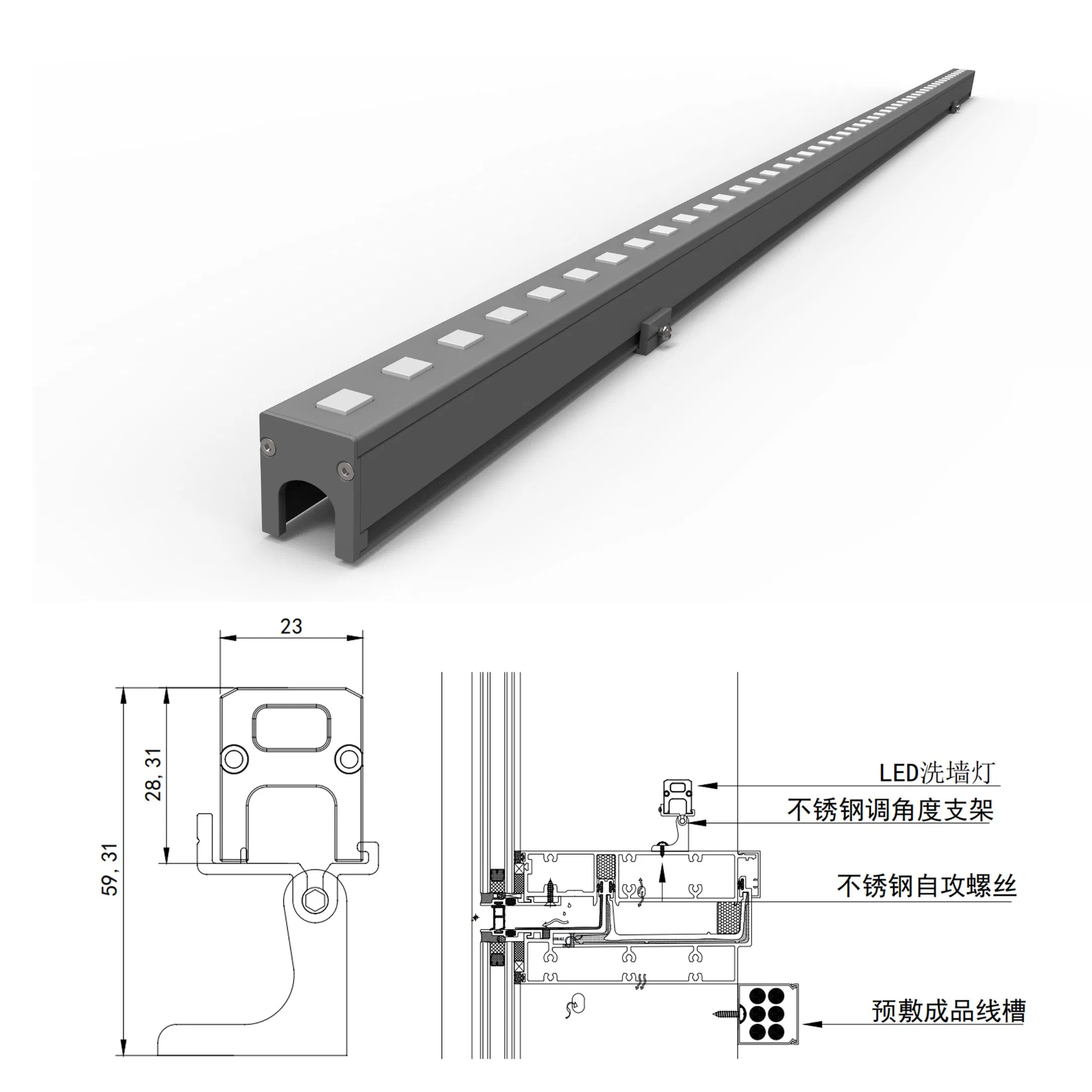

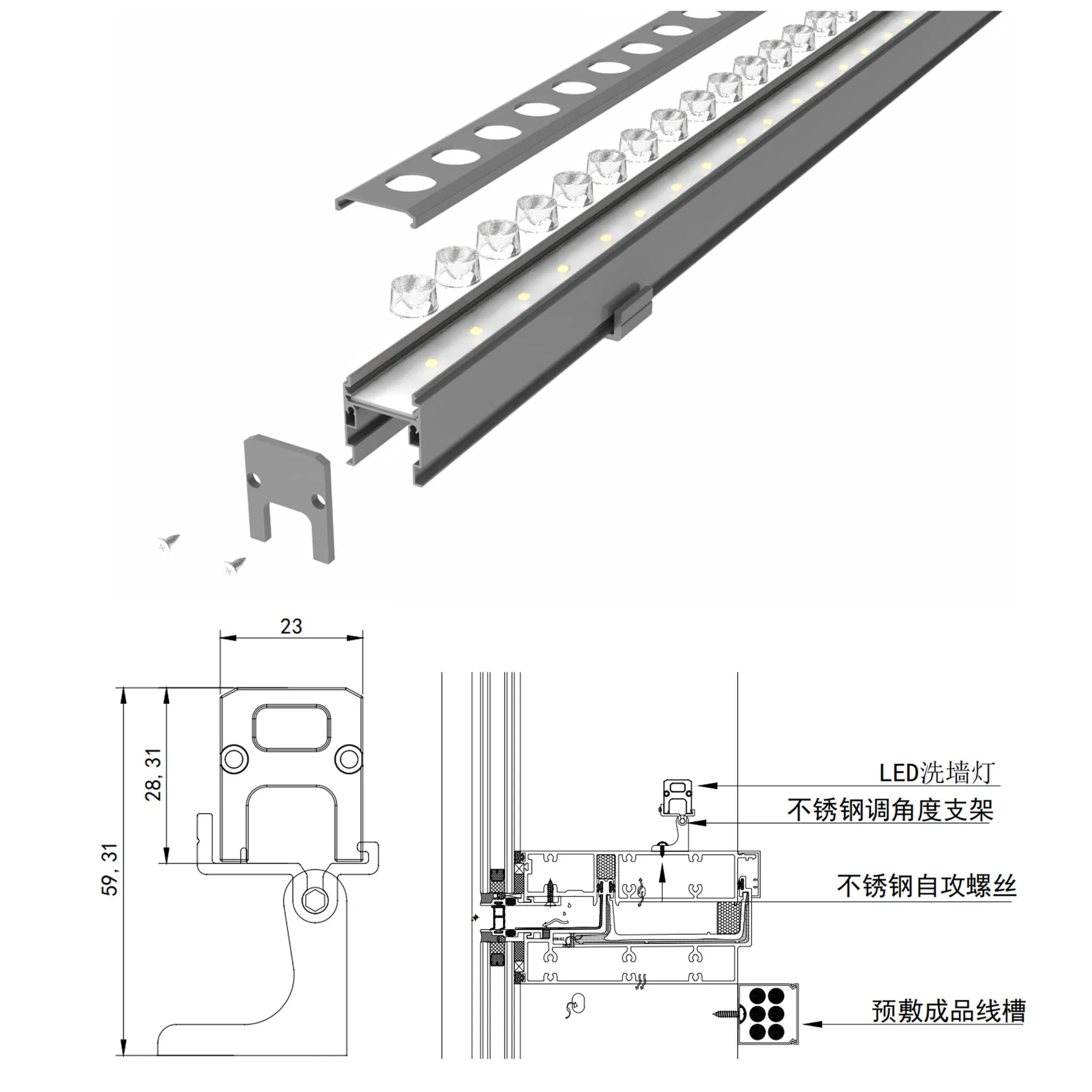

Product Size23 * 28.3 * 1000mm
Model Specifications
Model
Input Voltage (V)
Power (W)
Electrical Safety
Corrosion Resistance
Color Tolerance
EMC
Light-Exiting Size
Chip Brand
Color Temp
CRI
JYFT07
DC48V
12-15
Class III
II
≤ 5SDMC
EMC
≥3CM
Optional
Optional
RA≥80
Product Gallery
Frequently Asked Questions
What control modes are supported by this LED wall washer?
This LED wall washer supports two control modes: Monochrome constant brightness or standard DMX512-A protocol control.
What color temperatures and power options can I choose?
We offer 12W and 15W options with color temperatures ranging from 1800K to 10000K, alongside 15W RGB and 15W RGBW color options.
What is the IP protection rating, and is it suitable for outdoor environments?
Yes, this fixture has an IP65 protection rating, making it highly waterproof and dust-resistant for outdoor environments. It also supports an ambient working temperature range of -35ºC to ±50ºC.
What are the available beam angles for this light fixture?
The beam angles include 15°, 30°, 60°, 120°, 25*45°, 10*60°, and other customized options to fit different illumination needs.
What are the physical specifications and housing materials?
The fixture size is 23 * 28.3 * 1000mm. It is constructed from high-quality stretch aluminum housing, which can be sprayed to match the color of your curtain wall.
What is the expected lifetime of the LEDs?
The LED chips (available in SMD2835 or 5050 options) have a rated lifetime of up to 50,000 hours.
