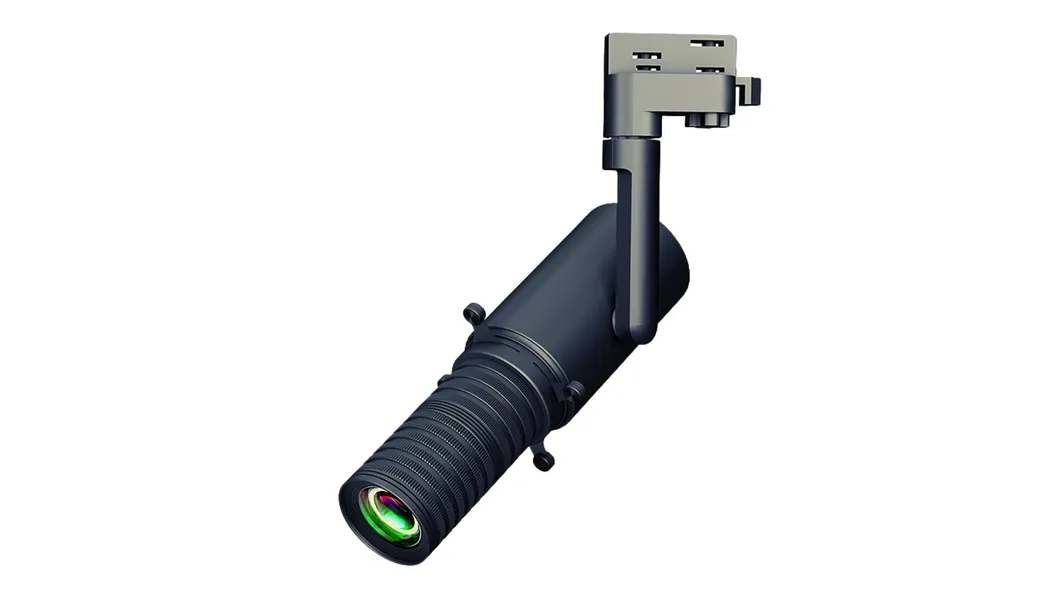

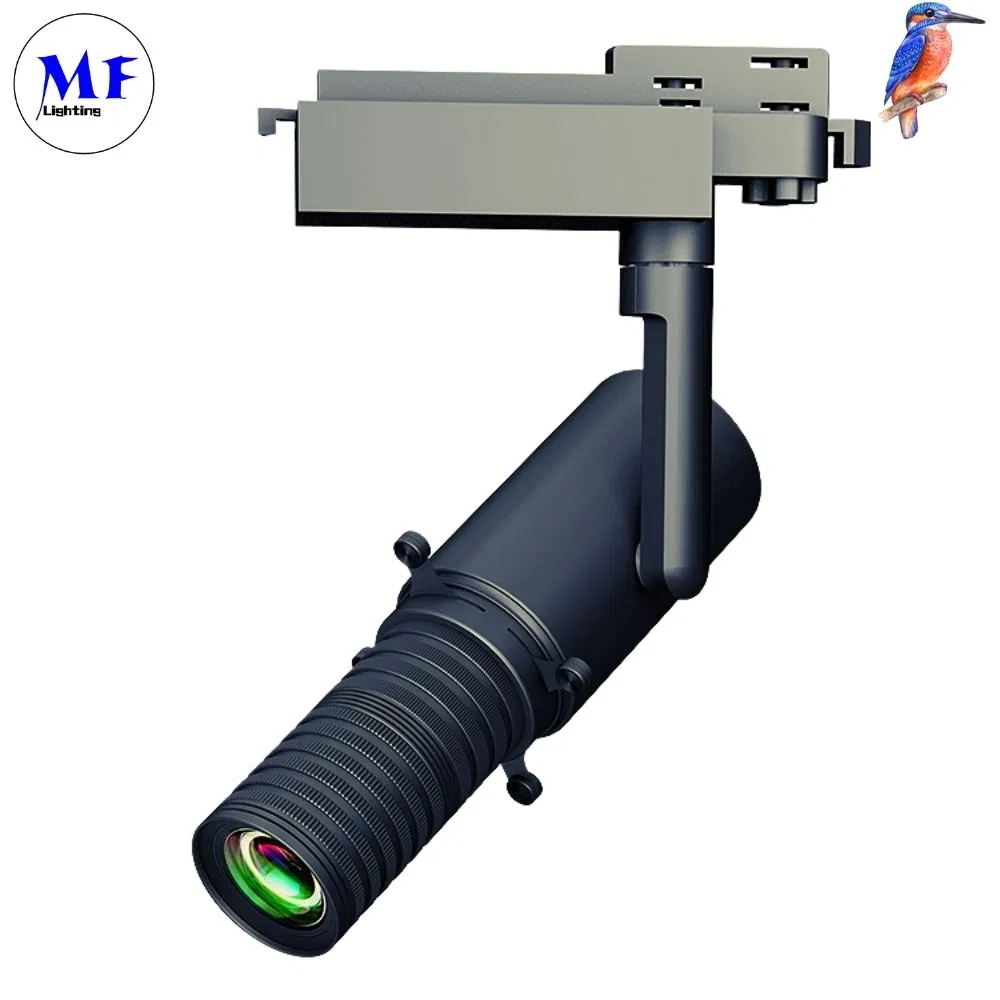

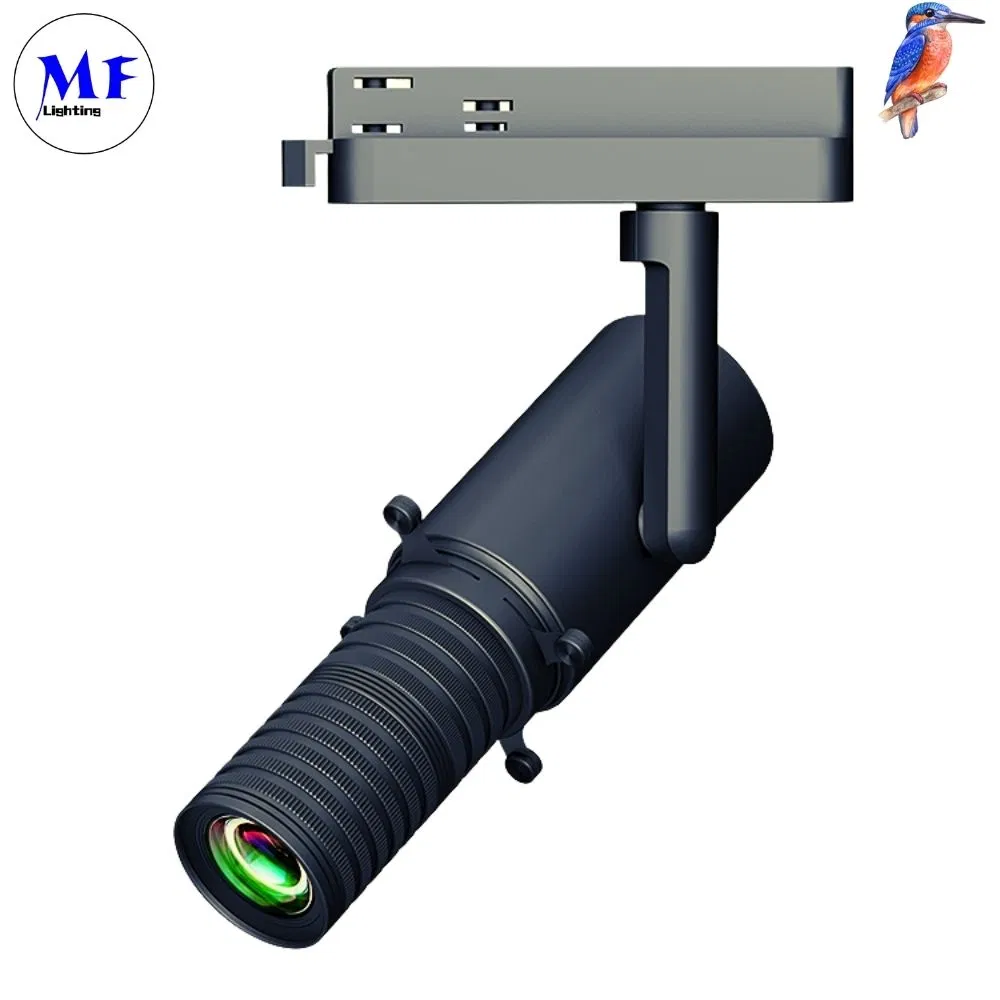

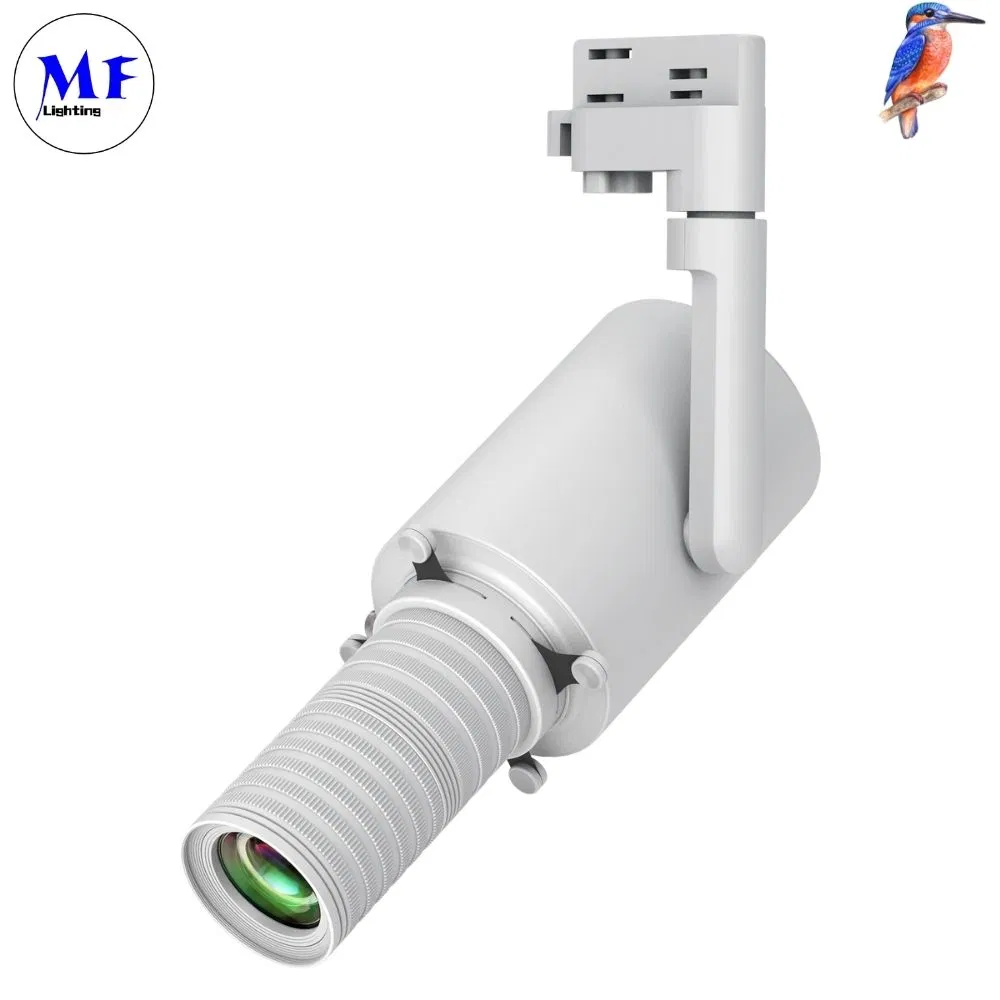

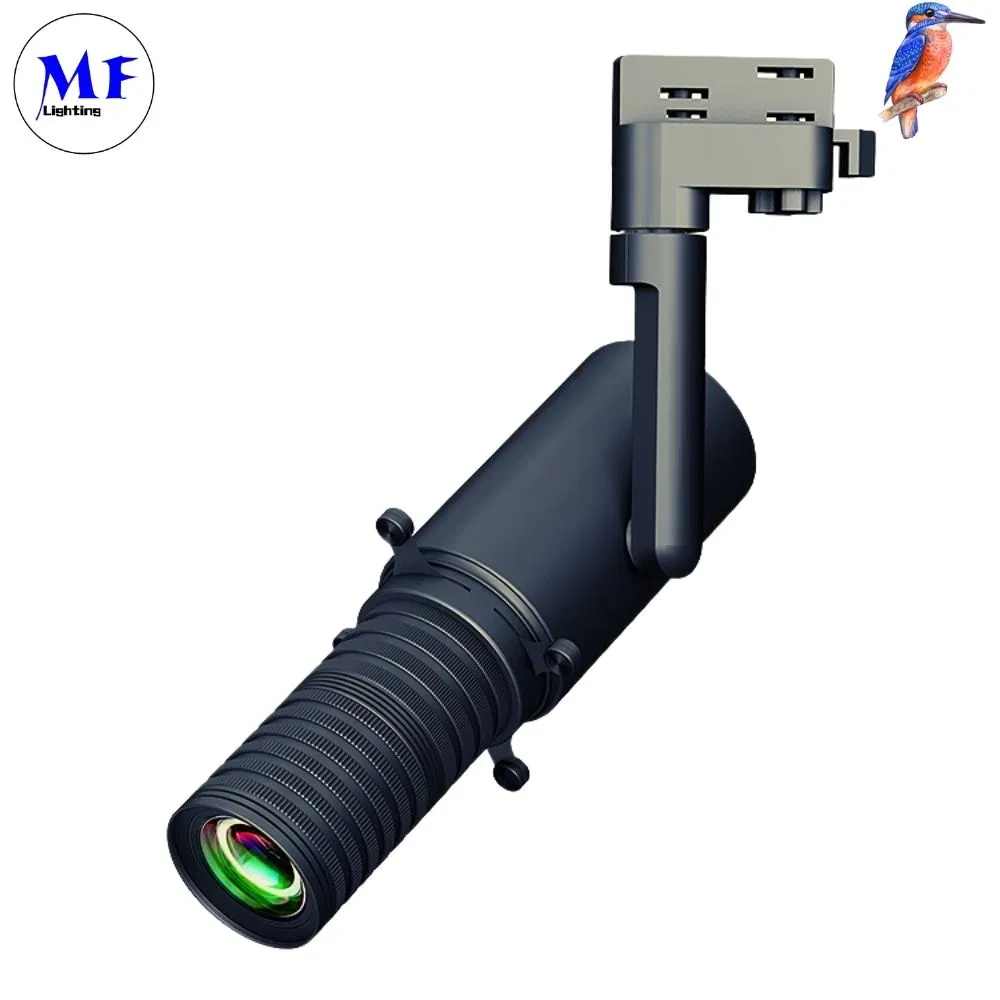

Factory Price 10W 1-10V Dimming Shapeable 360° Rotation High Brightness 2700K-6000K LED Spot Track Light For Art Gallery
Overview
Basic Info.
Model NO.
T1005AL
Power
8W/10W/20W/28W/37W
Emitting Color
Changeable
Wire
4wires/3wires/2wires/6wires/Mono/Other
IP Rating
IP54
Certification
CCC, CE, CQC, RoHS
Input Voltage
220-240V
LED Chips Brand
OS-RAM
Beam Angle (Lens)
25-45°/20-35°/20-36°/15-25°
CRI
>97
Color of Housing
Black White
Warranty
2 Years
Specification
1pcs/ctn
Origin
China
HS Code
9405429000
Production Capacity
5, 000PCS/Month
Product Description
Fully independent intellectual property rights, global patents, global certification! Dry stepless linear zooming and spot shaping. Frame size 1:0.8
There can never be only one lighting design solution. The possibilities in the design are limitless. Moreover, the spirit of the times, cultural background, abstract concepts, and even the personal characteristics of the designer can be different and diverse. We look for the most suitable way of light expression in this infinite possibility.
It can match a variety of industrial-grade optical filters and support the customization of special narrowband and ultra narrowband optical filters. Some filter functions can be superimposed, such as HD UV+color filter, HD UV+soft filter, amongst others.
Color filter: The luminous color of the lamp can be adjusted according to your needs.
ND filter: With electronic dimming, the small-angle illumination can be reduced to less than 75LUX, which is generally used for authentic lighting.
UV filter: It can effectively filter UV rays in LED lamps and lanterns, thus protecting the illuminated object. It delivers superior performance in silk products lighting and cultural relics lighting.
CPL filter: It can eliminate the reflection of the object's surface so that the object in a high luminosity environment can also display its original appearance.
GND filter: GND filter are used to alter the light ratio into the lens. For example, in illuminating the oblique side of the square position of the object, the use of gradient filters allows the even and constant illumination of the object.
360° manual rotation design: Loosen the manual screw and turn the lens to achieve the 360°spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.
Optical-grade variable aperture design: An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
Multi-layer dry damping design: The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use.

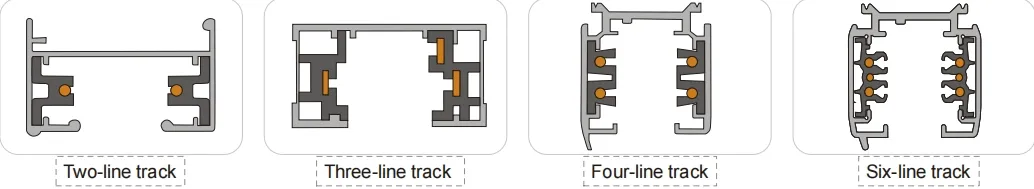

Track Support
DIP color temperature coupled with the single lamp knob dimming design can easily achieve single lamp dimming, spot shaping and color temperature adjustment. It can be used alone or can alternatively be equipped with other dimming devices.
2700K
4000K
6000K
Control support
Support 1-10V, DMX, DALI, ZIGBEE, and other mainstream control. Can also be connected with smart AI control systems.
Instruction Manual
Adjust the aperture to the appropriate size, and facing the center of the irradiated object, adjust the sharpness to a reasonable degree, as shown in Figure 17.
Pull the four diaphragm sheets outward to the maximum, and then push one by one vertically inward, to ensure that the cut square spot is smaller than the object to be illuminated, and adjust the sharpness of the aperture again until satisfactory, as shown in Figure 18.
If the shape of the spot does not match the object to be illuminated, first loosen the hand screw at the red mark, rotate the blue part of the lens, adjust the edge of the spot to be parallel to the edge of the object to be illuminated, and finally tighten the hand screw. As shown in Figure 19.
Stretch the diaphragm sheet one by one outward until the spot size is substantially consistent with the object, as shown in Figure 20. Repeat as necessary to achieve the desired effect.
Important Notes
1. When replacing the projector, be sure to pull all four diaphragm sheets outward to the maximum extent and then load the projection device to prevent damaging lens parts.
2. Do not remove the rest of the lens except for replacing the projection unit and routine lens maintenance.
3. Track-type shapeable track light is generally heavier than ordinary track lights. Please determine whether the installation conditions are allowed before installation.
4. The lens does not contain any repair accessories. Please do not disassemble the lens without permission.

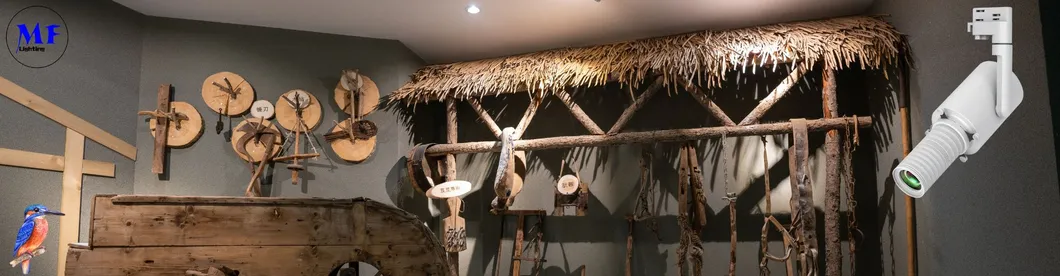

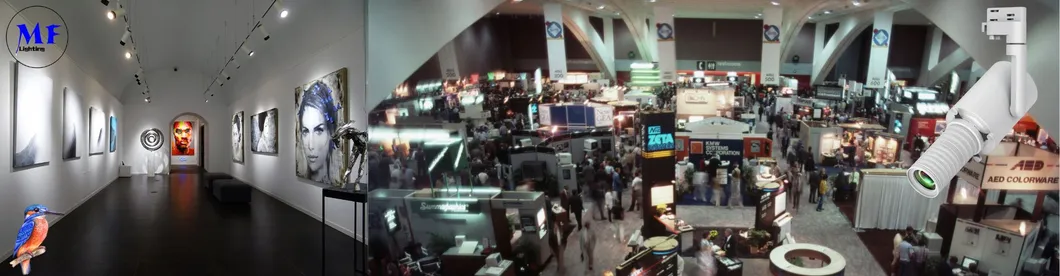

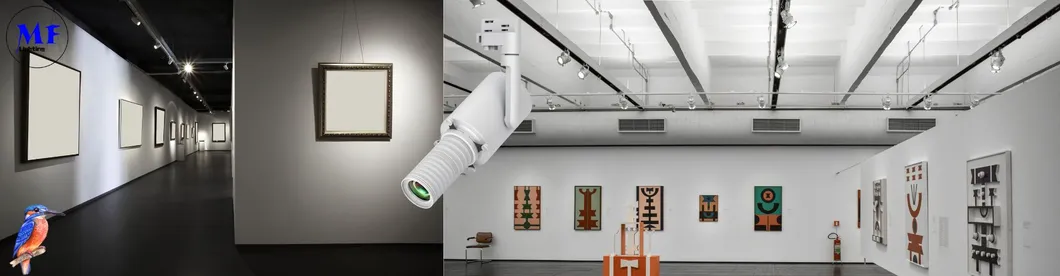

Application
Packaging & Shipping
Company Profile
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, operating under strict quality management systems.
Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
What is the lead time for the LED Light?
For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
How do you ship the finished products?
We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Can I print my logo on the LED Light?
Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
How do you handle defective products?
All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you.
