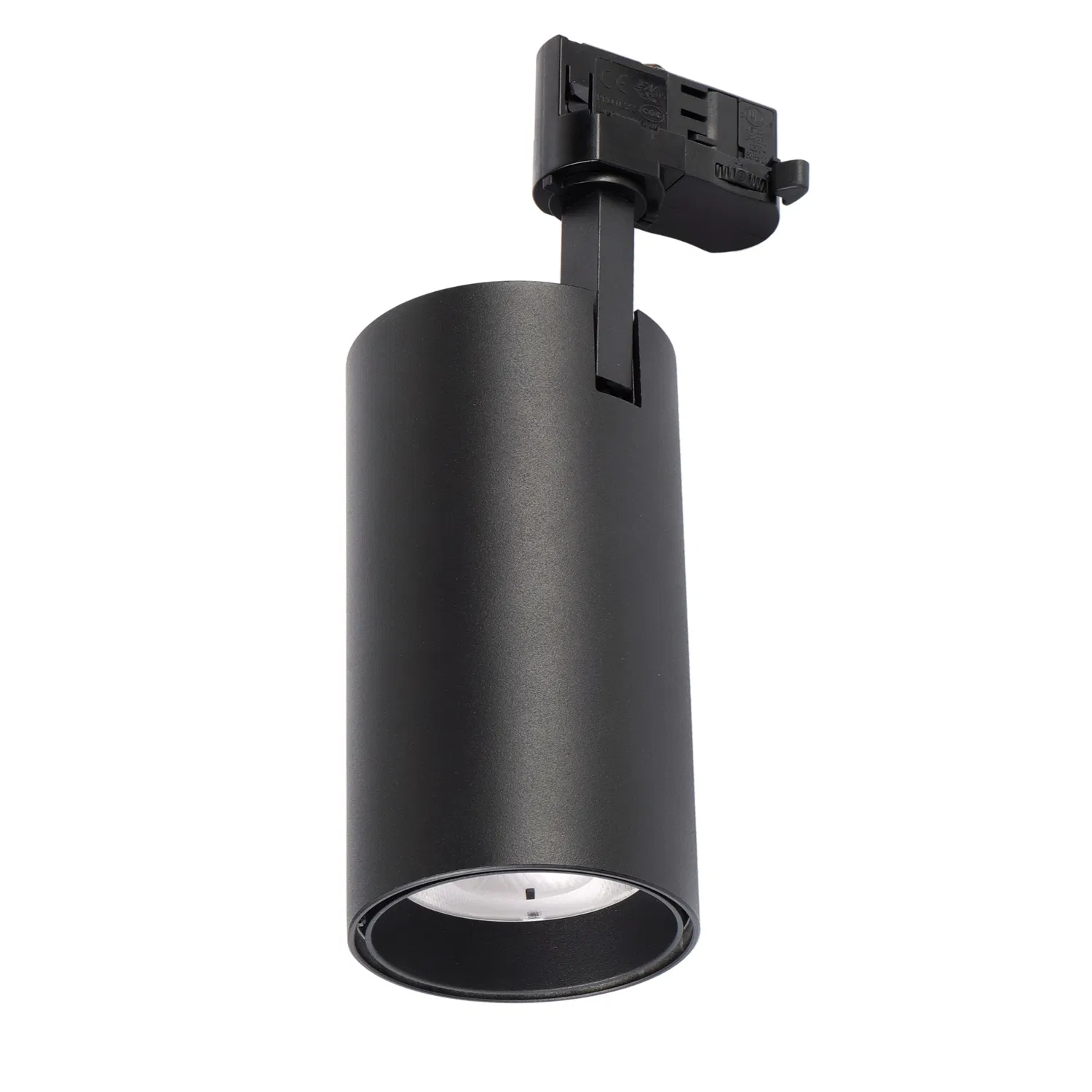

Commercial COB Spotlight 30W Adjustable Smart LED Track Light

1 / 5

Commercial COB Spotlight 30W Adjustable Smart LED Track Light

Send Inquiry

Product Description

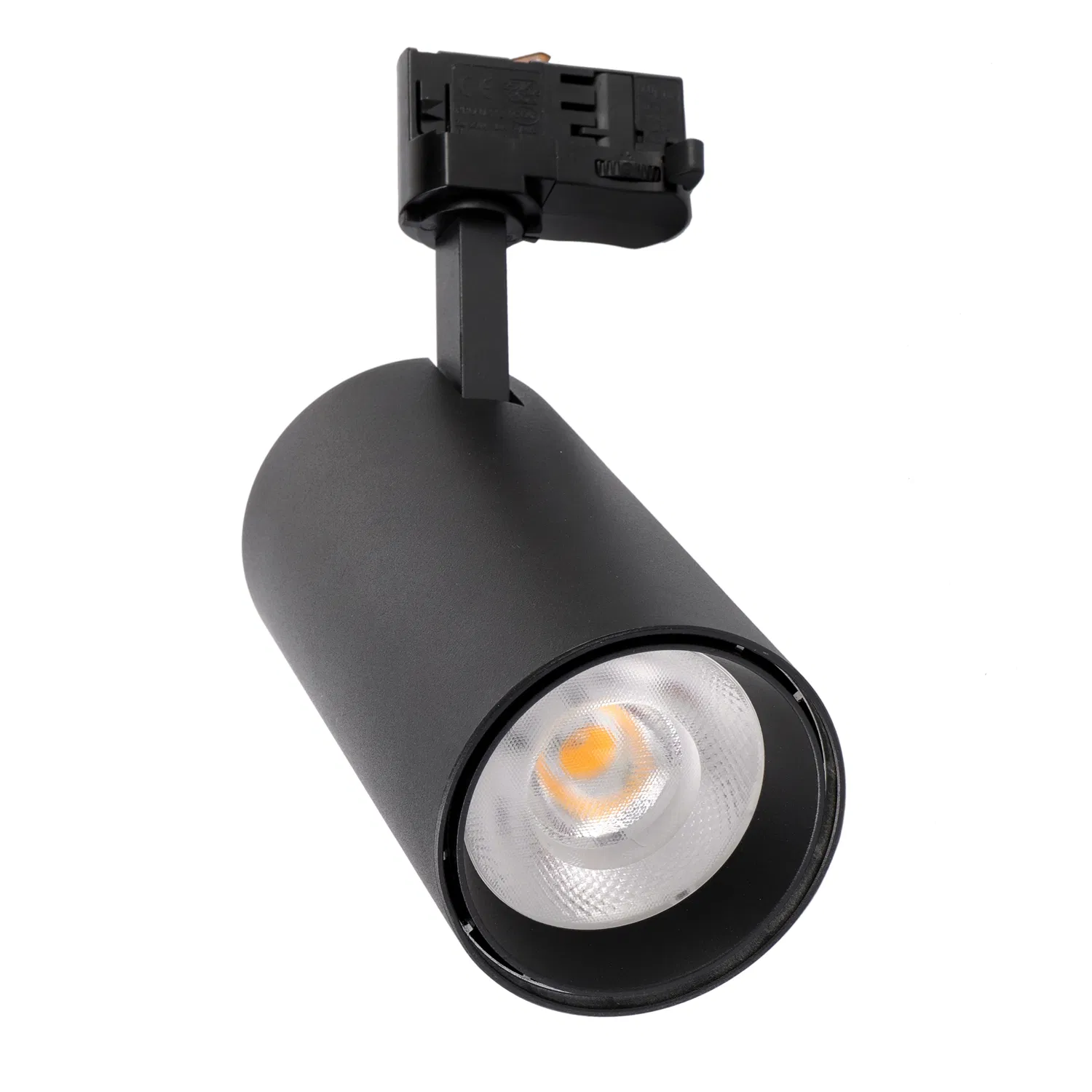

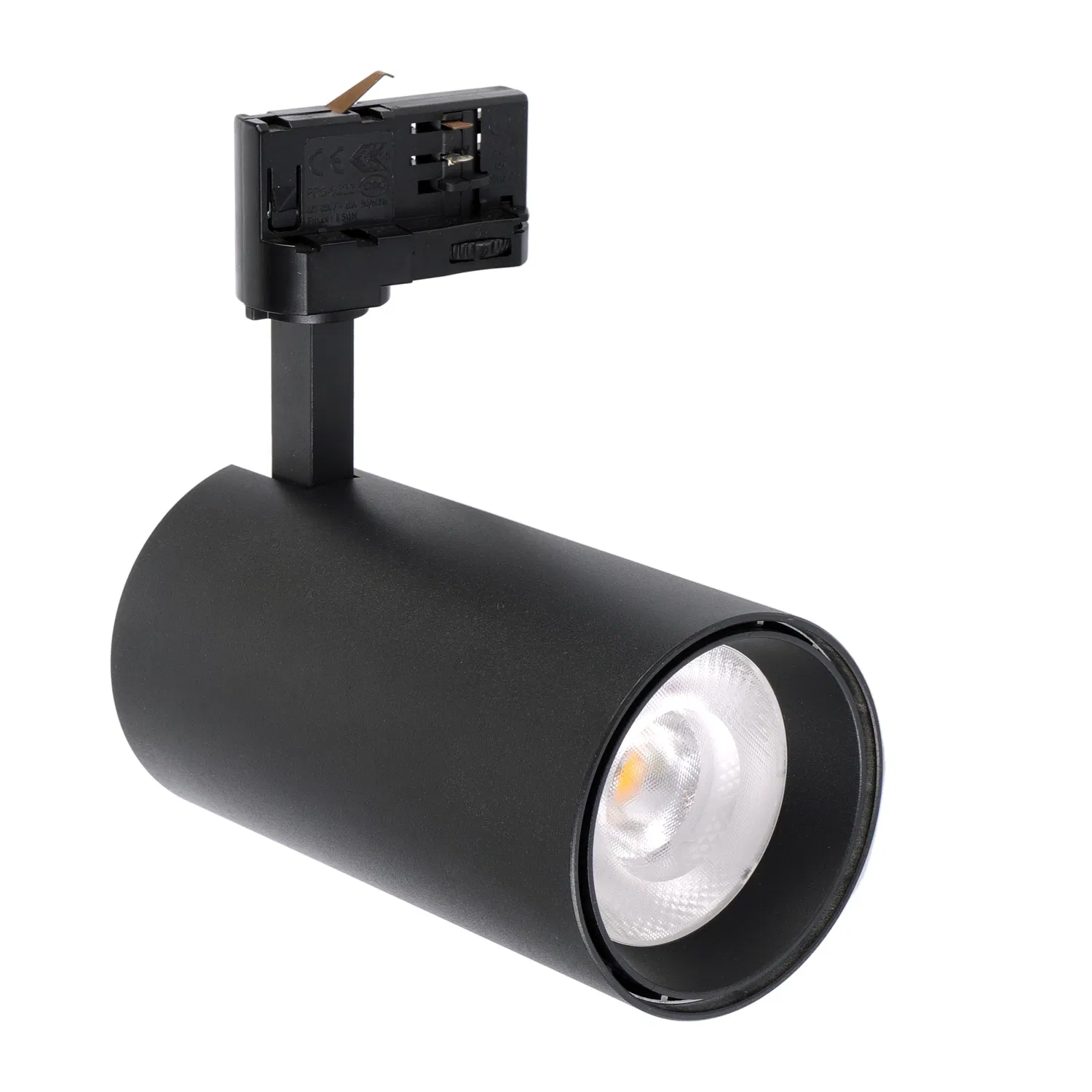

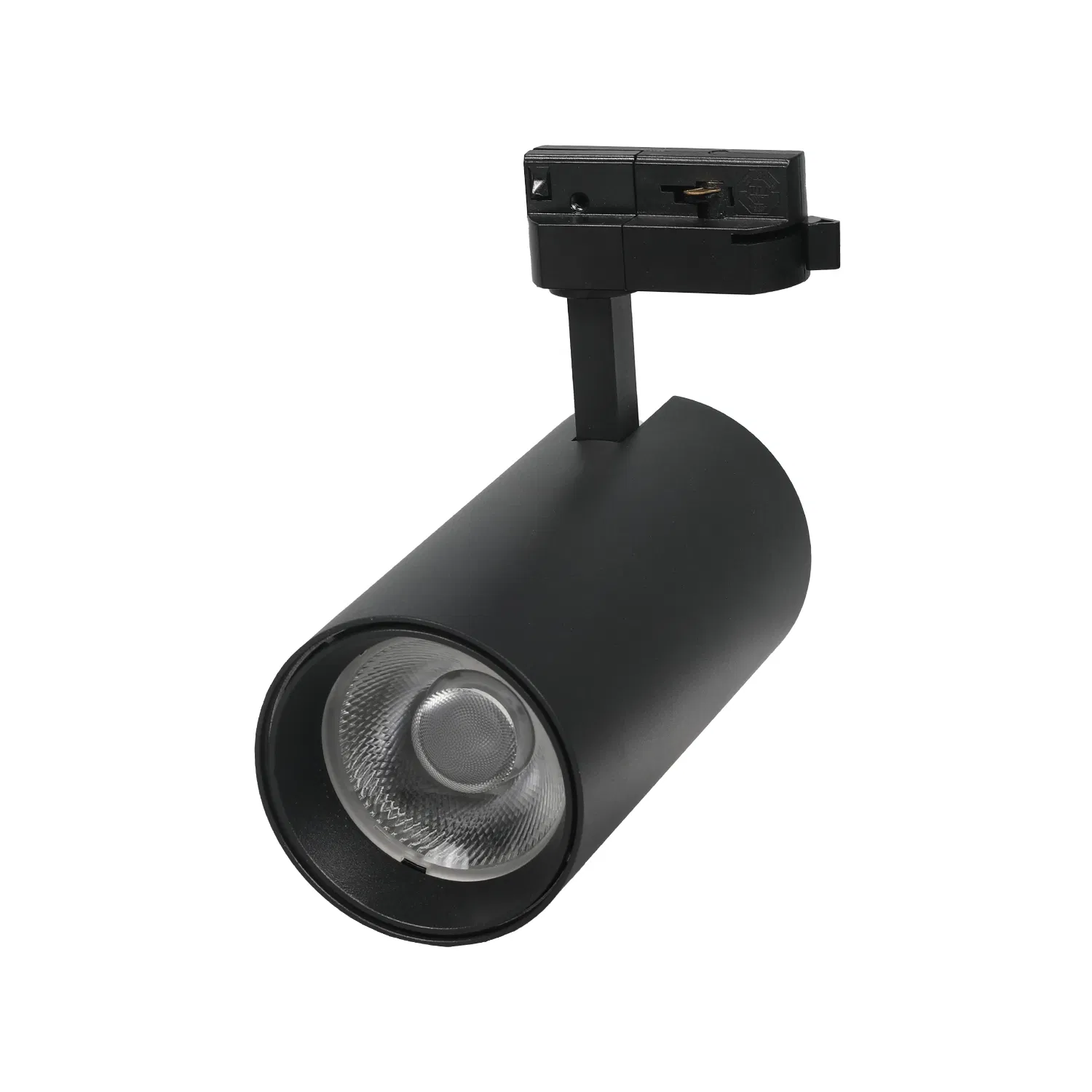

Commercial COB Spotlight 30W Adjustable Smart LED Track Light

This track light is with driver built-in, which makes it look very compact. Most led track lights with build-in drivers on the market have the problem of poor heat dissipation. But this one uses a high-performance driver, which is specially developed for built-in track lights and has high-temperature resistance. Though the driver is the built-in type, it also ensures a long lifespan of 50000 hours and a real warranty 5 years.

This series of track lights adopts Tridonic, Lifud, and Boke driver for non-dim; HEP driver for 0/1-10V dimming; Rxpower driver for DALI dimming.

i Specification of LED Tracklight ST-T**04

	ST-T1004	ST-T2004	ST-T3004
Power (W)	10W	20W	30W
Lumen Output	1000-1200lm	1900-2200lm	3300-3800lm
Beam Angle	15° / 24° / 36° / 50°	15° / 24° / 30° / 55°	15° / 30° / 45° / 60°
Size	65*130mm	75*160mm	85*160mm
LED Brand	Citizen / Luminus / CREE
Color Temperature (CCT)	2700K / 3000K / 4000K / 5000K / 6000K
Rendering Index (CRI)	Ra>90 / Ra>95 / Ra>97
Color Consistency (SDCM)	<3
Lumen Maintenance Factor (LLMF)	>80%
Driver Brand	Philips / Osram / TCI / Powergear
PF	≥0.95
Flicker-free	Yes
Dimmable	non-dim / Triac-dim / 0-10V dim / DALI dim
Track	3 wires (single phase) / 4 wires 3 phase / 6 wires
Material (Heatsink)	cold forging #1070 aluminum

DALI dimming is available with 4 wires and 6 wires.
Zoomable beam angle 15-60° is available.
Turnable CCT by DIP switch is available.

★ Advantages of LED Tracklight ST-T**04

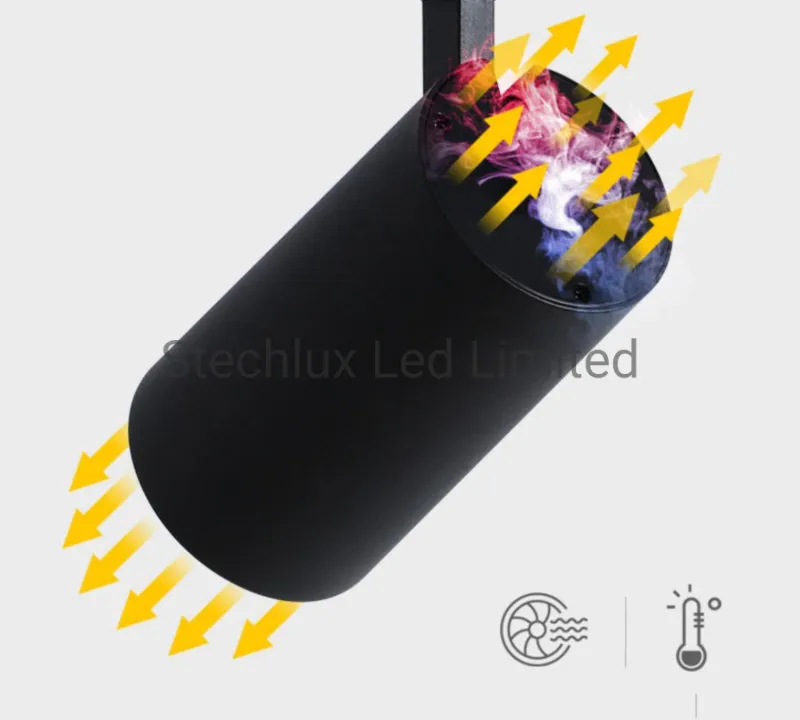

* Cold forging aluminum #1070

The lamp body (heatsink) of this track light uses purer aluminum #1070 by the technology of cold forging. The cooling effect of cold forging aluminum is 30% higher than that is #6063 profile aluminum (extrusion aluminum) and 2 times better than that of die ADC12 aluminum by casting.

The thermal conductivity of different aluminum materials:

• Cold forging aluminum(#1070): 226 w/m.k

• Profile aluminum(#6063): 180 w/m.k

• Die casting aluminum(#ADC12): 98 w/m.k

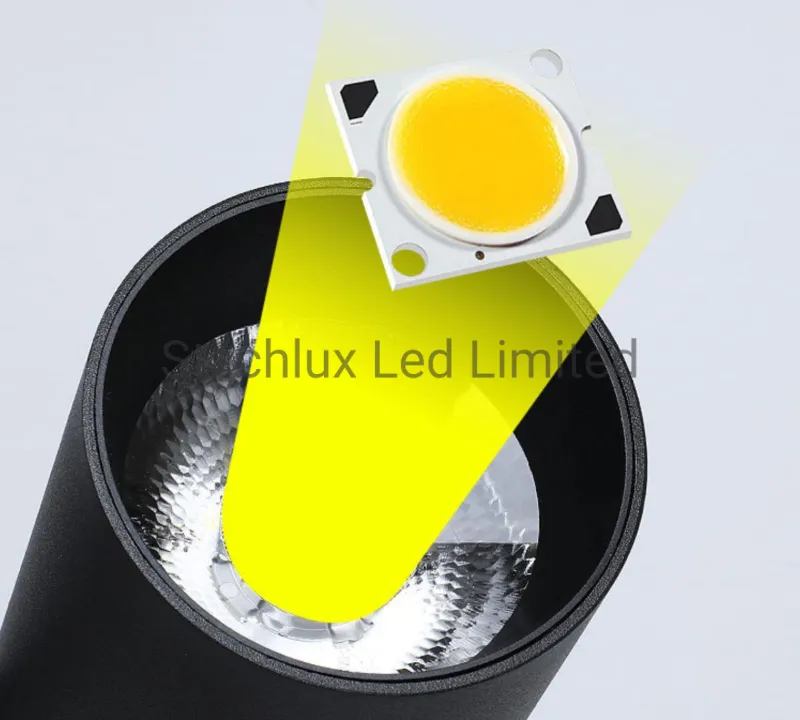

* LED chip with high CRI & high light efficiency

We use the original LED chip Citizen or Luminus COB for this track light. They are not only high CRI90 or 95 but also high light efficiency. Higher CRI can better restore the original color of the irradiated object. And the higher the light efficiency, the more energy saving.

For example: The lm/W of 30W can be 137lm/W at 3000K CRI90.

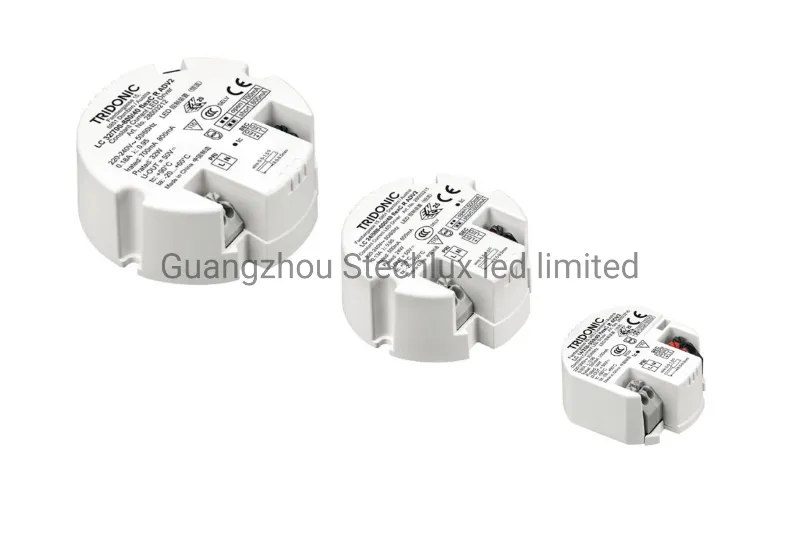

* Glued type driver with high-temperature resistance; PF>0.95 & flicker-free

The driver of this track light is a built-in lamp body, which requires that the driver must be glued type so that it can be high-temperature resistance. The Tridonic driver we use for this track light has Tc >90ºC. It is the best option for this kind of track light. Other brands are optional like Lifud, Boke, HEP, etc.

⚙ Applications for Reference

This series of recessed downlights are perfectly suitable for use in high-end hotels, villas, and mansions. It provides a comfortable and healthy lighting space.

? Frequently Asked Questions (FAQ)

Can I have a sample order?

Yes, we welcome sample order for quality check. Mixed samples are acceptable.

Do you have any MOQ required?

Low MOQ, but different prices with different quantities. 1pc for sample checking is available.

Is it OK to print my logo on the product?

Yes, please inform us before our production and provide the logo file with the editable format.

What about the lead time?

About 3-5 days for samples, 7-15 days for formal order.

Do you offer guarantee for the products?

Yes, we offer 3-5 years warranty for our products. We can sign the Warranty Statement.

How to start an order?

Please select the suitable products according to your project and send us an inquiry with detailed requirements directly. Then, we will make an offer for you.
