Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
YB01Z Series
IP Rating
IP20
Lamp Body Material
Aluminum
Style
European
Certification
CE, EMC, Energy Star, FCC, GS, RoHS, Saso, UL
LED Chips
CREE
Color Temperature
3000K/4000K/5000K/6000K
Voltage
100V-277V
Beaming Angle
30°/60°/90°/120°/Asymmetric
CRI
80
Lm
130lm/150lm/180lm
Application
Airport, Warehouse, Shopping Mall
Origin
China
HS Code
9405409000
Product Description

Saso cUL Ce CB 28W-150W shop light Best Array Dimmable Industrial Linkable LED Track Linear Lights Factory Made in China for Home & Business Indoor Lighting

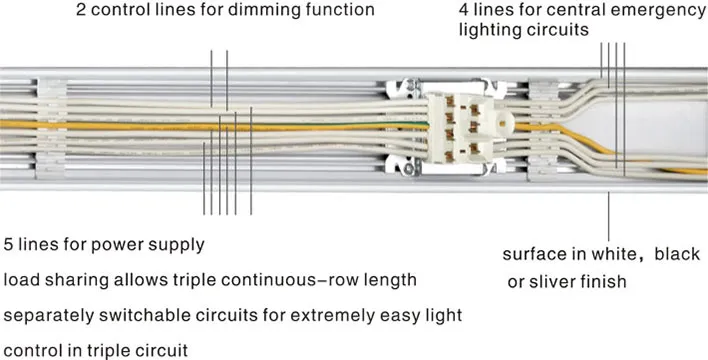

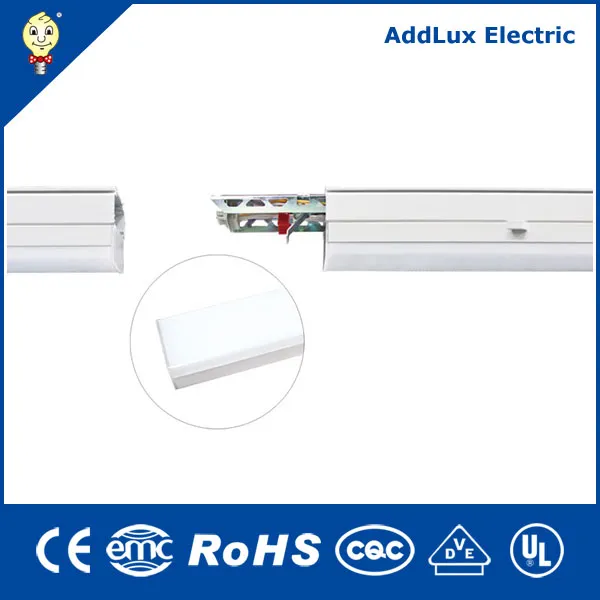

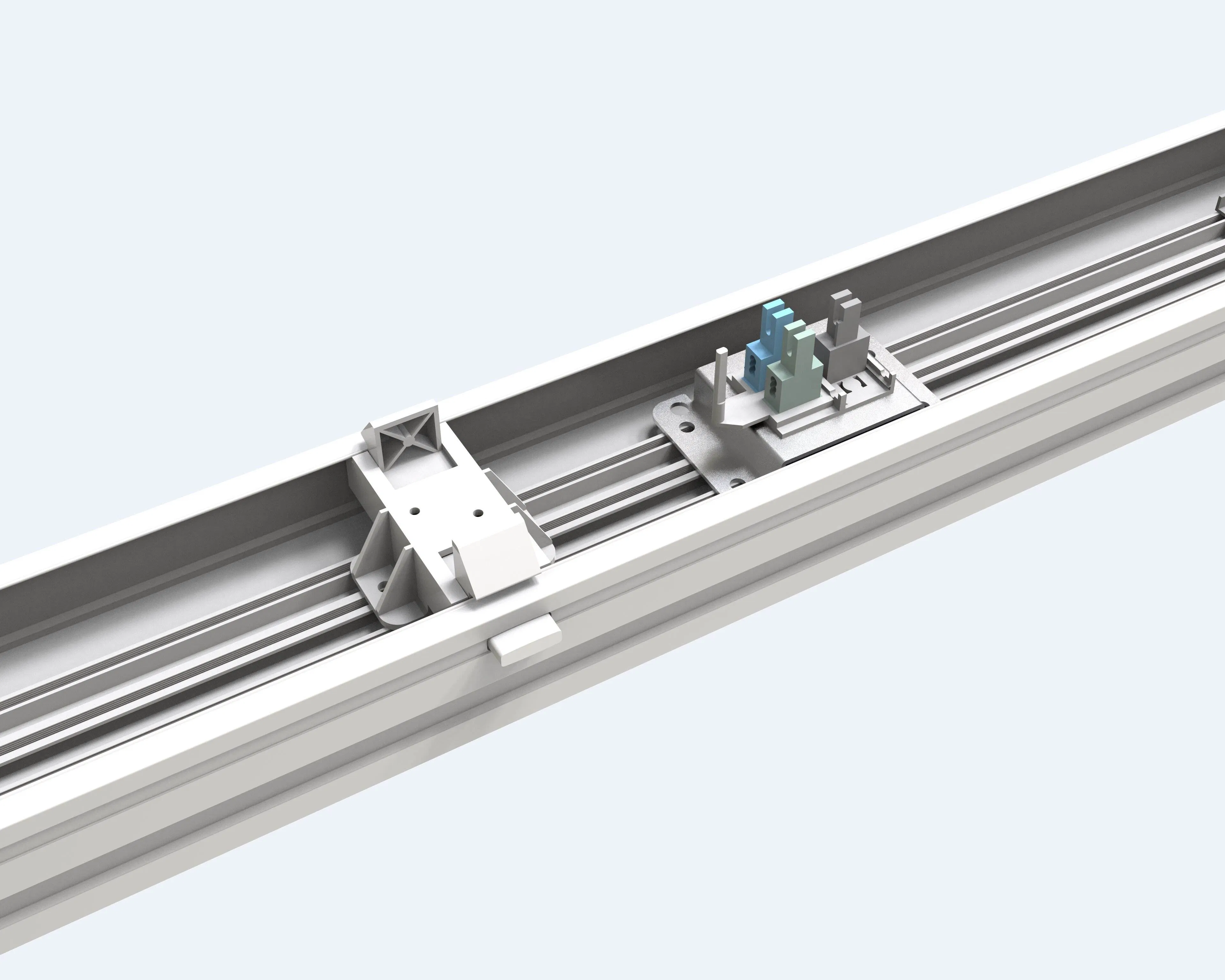

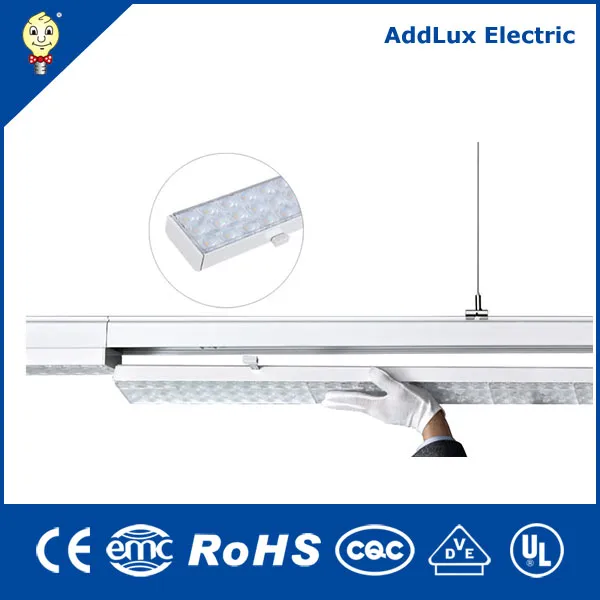

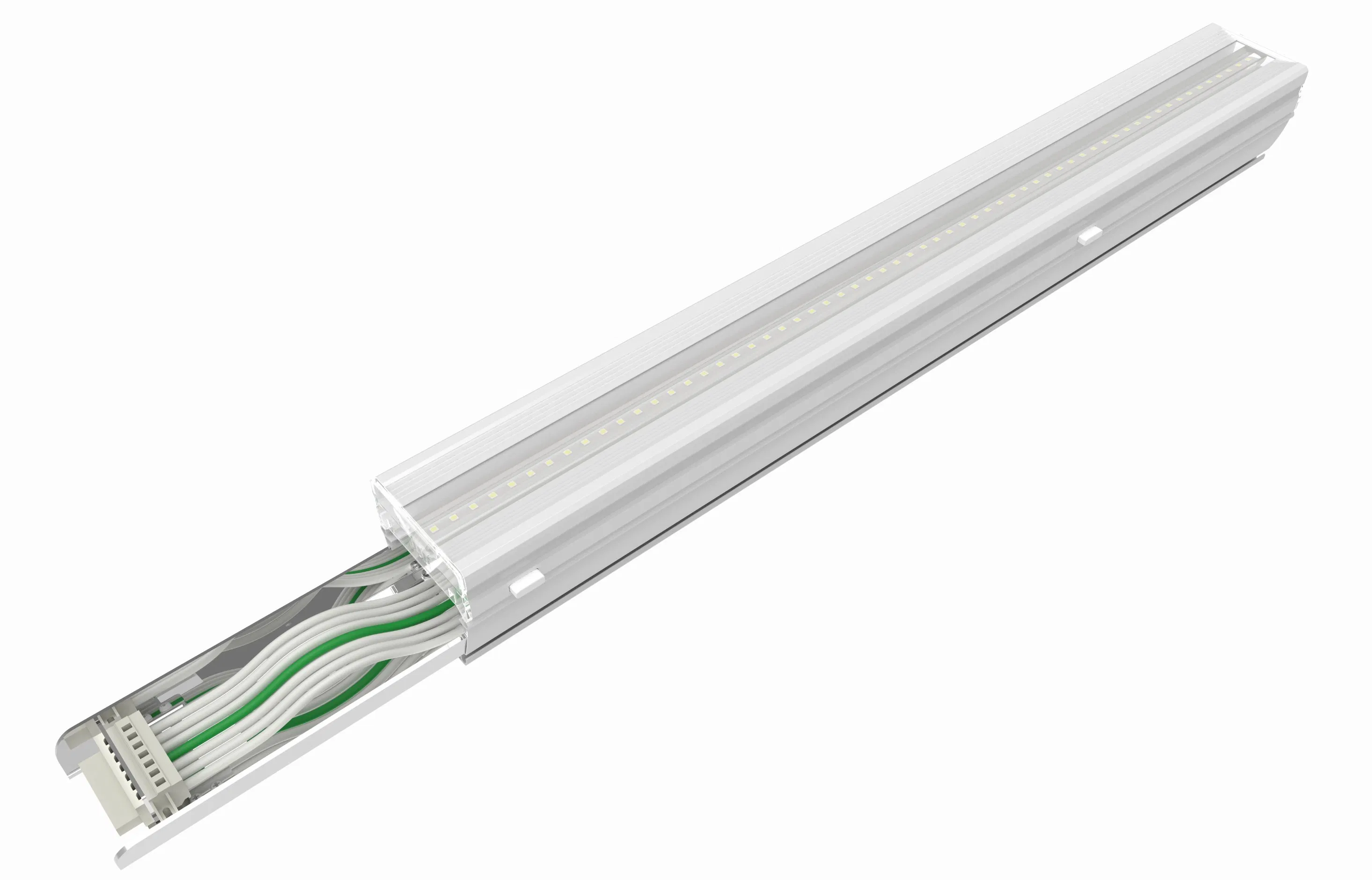

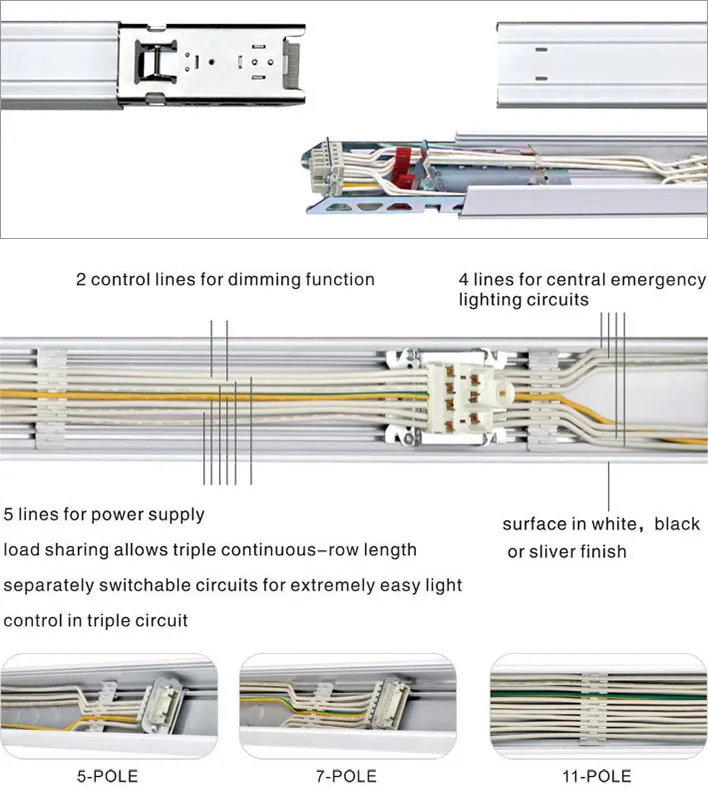

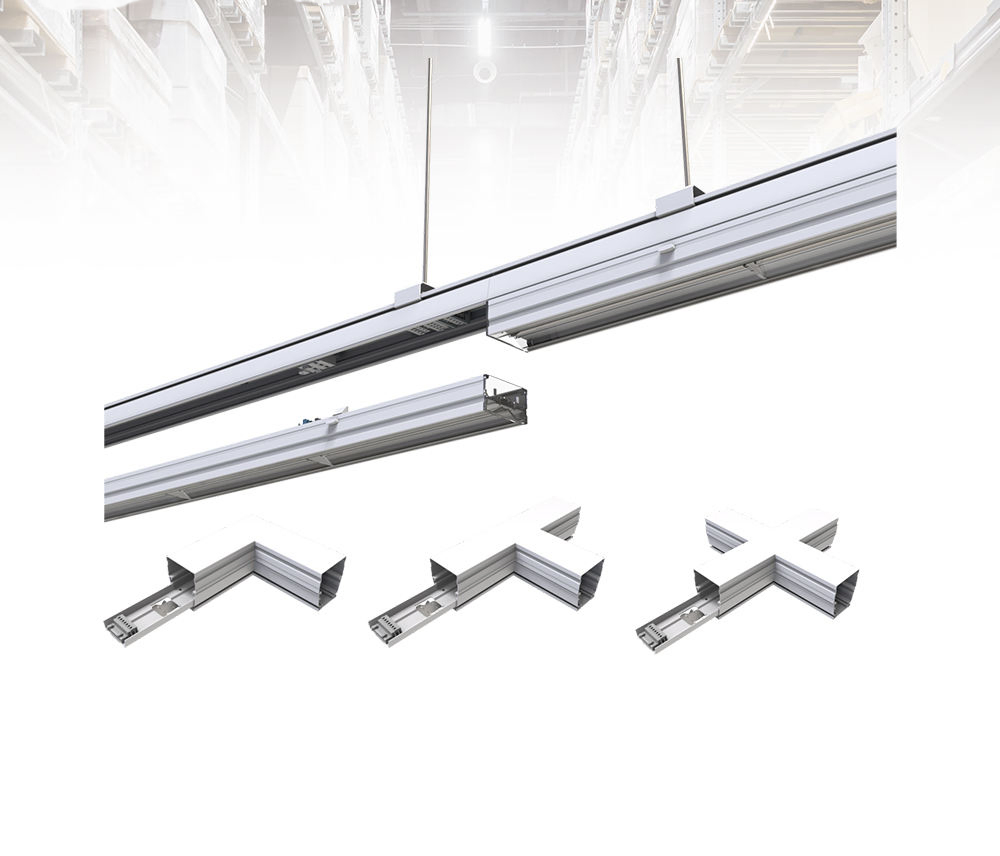

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.

  • Power: 28W-150W
  • Rated Voltage: 100-277V
  • Color Temperature: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Dimming: NON/1-10V/DALI/3CCT
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric
Features of 28W-150W Array Dimmable Linkable LED Linear Lights

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

Item No.LengthPowerLumen
YB01Z0632577mm28W4160Lm
YB01Z15751432mm75W9750Lm
YB01Z301502861mm150W19500Lm
YB01Z452254297mm225W29250Lm
LED Linear Lighting System shop light

The LED linear lighting system is an energy-efficient, low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations.

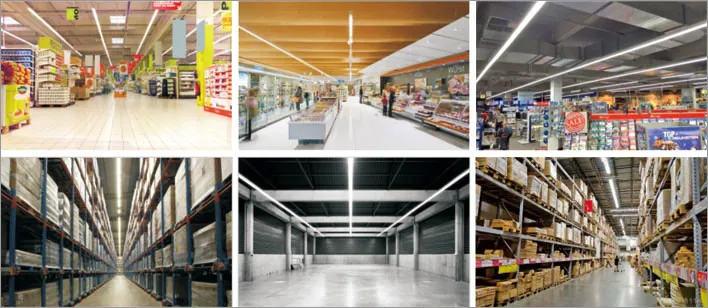

Application of array dimmable linkable LED linear lights
  • Warehouse
  • Supermarket
  • Underground parking garages
  • Wet indoor area
  • Production workshop
  • Railway station
  • Museum
  • Laboratories
Frequently Asked Questions
1. What power range does this linear light support?
The system supports power options ranging from 28W to 150W to suit different space requirements.
2. Are these lights dimmable?
Yes, the series supports multiple dimming options including Non-Dimming, 1-10V, DALI, and 3CCT control.
3. Can the light units be linked together?
Yes, these are designed as linkable LED linear lights, allowing for a continuous-row lighting system using trunking units.

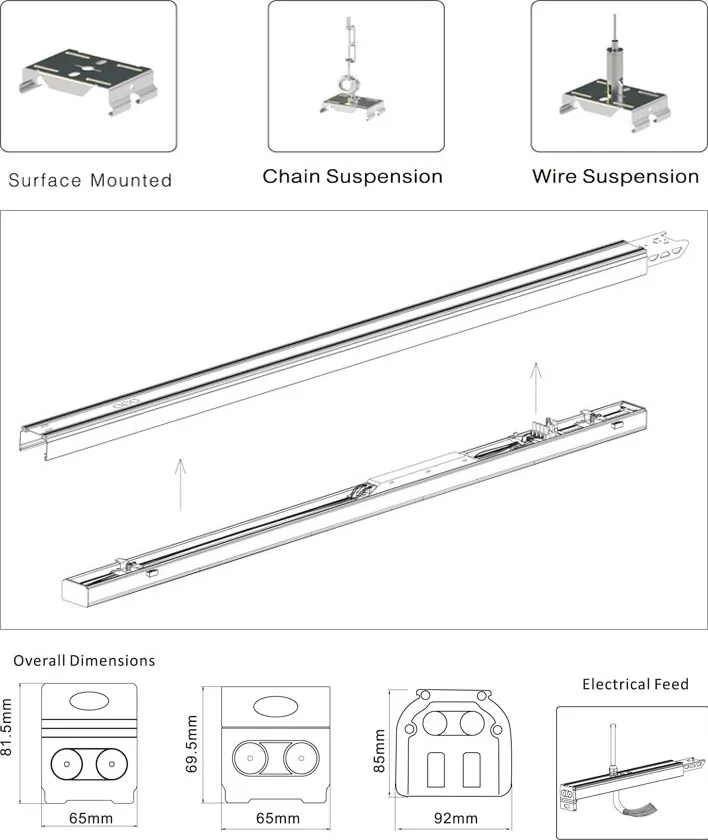

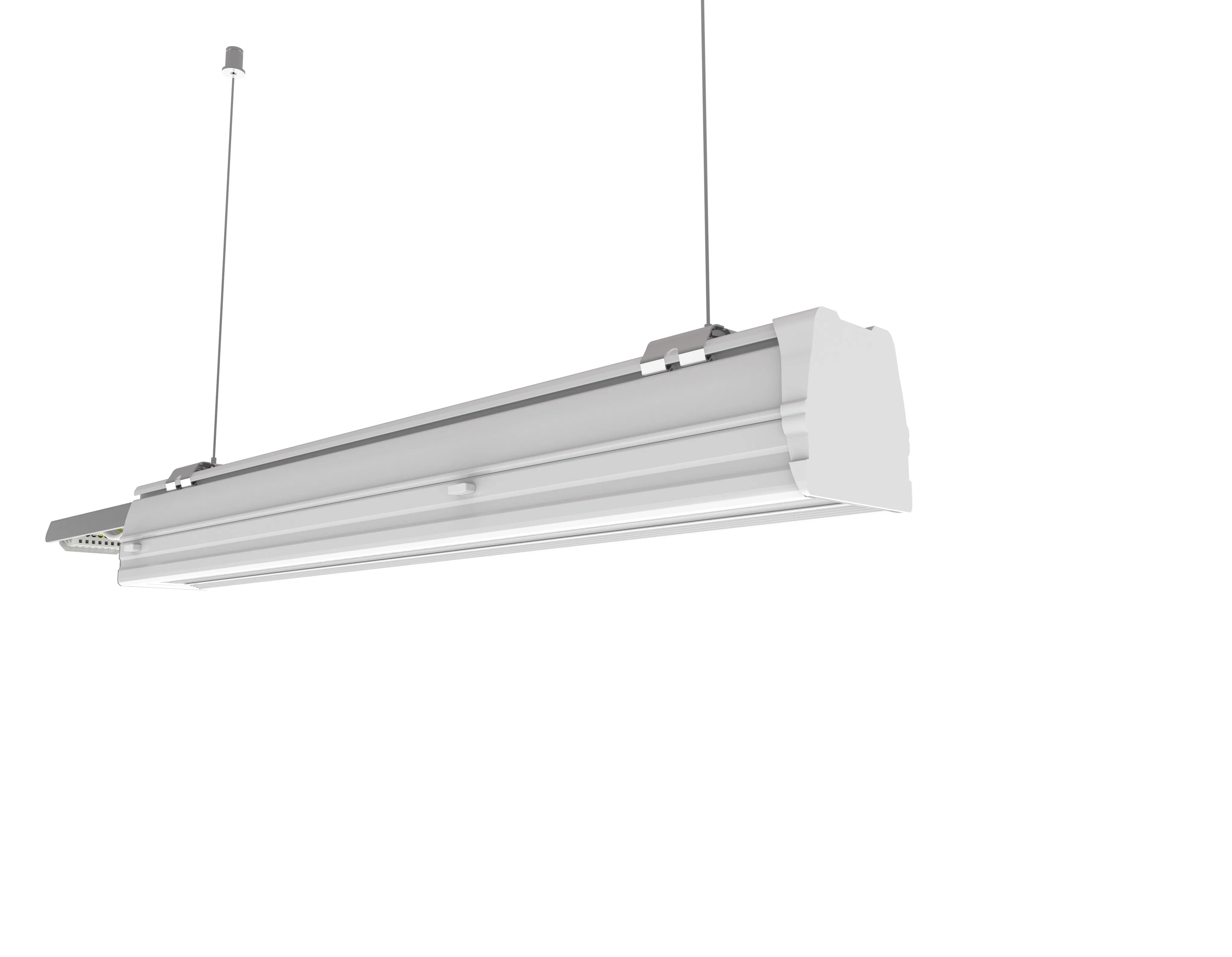

4. What kind of installation methods are available?
The system is versatile, supporting ceiling mounting, wall mounting, pendant mounting, chain suspension, and wire suspension.
5. Are there different beam angles available?
We offer various optics including 30°, 60°, 90°, 120°, and Asymmetric beam angles to accommodate different application needs.
6. Does it support emergency lighting functionality?
Yes, the system is compatible with emergency lighting modules, including central battery systems and self-contained battery options.
