Home > LED Strip Light > High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
1 / 4
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light

High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.HL-505084RGB
Emitting ColorRGB
Voltage24V
IP RatingIP65
LED Chip Brand818mil Sanan
Support IP LevelIP44 IP65 IP67 IP68
Color TemperatureRGB
PCBA10m 25/50 0.3-0.32um
LED Chip HolderLiyou PPA
Bin<3-Sdcm
Backtape Optional 13m 300lse
Backtape Optional 23m 4229vhb
Backtape Optional 33m 5604vhb
Backtape Optional 43m 5925vhb
Backtape Optional 53m 5952vhb
Cable Line#20 Silicon
Warranty3years
Transport PackageCarton Box
Specification60*40*23
TrademarkOEM
OriginChina
HS Code9405409000
Production Capacity800000mtrs/Year
Product Parameters
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
Parameter Specification
Input Voltage 24VDC
Power 20 watts/meter
Color Temp. RGB(3in1)
Cut Unit Every 6LEDs (71.43mm-24V)
Beam Angle 120°
CRI /
PCB & Finish 10mm width, 2oz copper, white finish
Operate Temp. -20ºC to 50ºC
IP Rating IP20/IP65/IP66/IP67/IP68
Warranty 3 years
Run Length 5 meters per roll
Certifications ISO9001, ETL, TUV-CE, RoHS, SASO

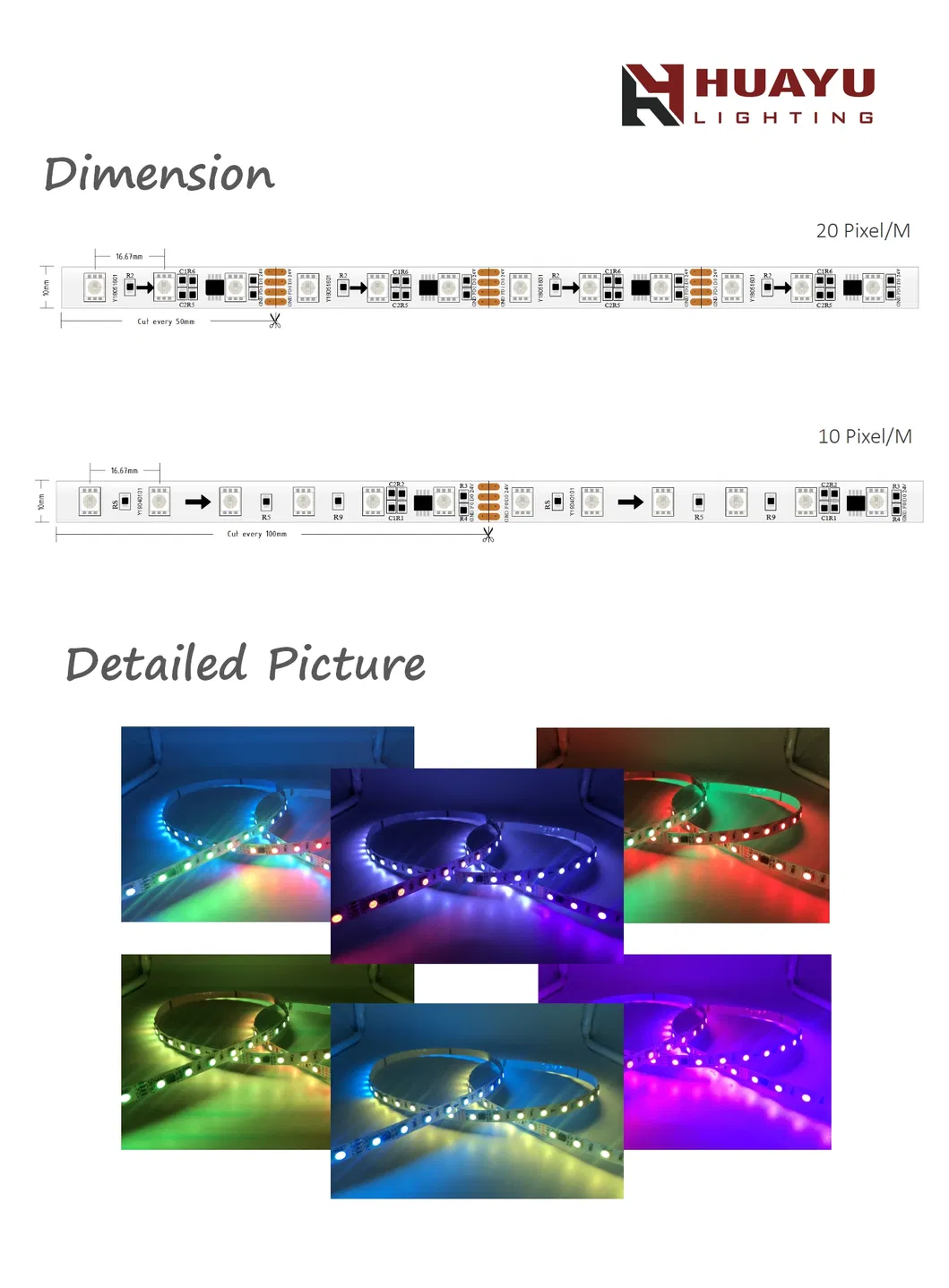

Detailed Photos
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
Other Models for Selection
High Quality RGB DC124V LED Strip 10mm Wide PCB SMD 5050 84LEDs/M 20W/M LED Strip Light
Frequently Asked Questions
What is the input voltage of the HL-505084RGB LED Strip?
The LED strip operates on a 24VDC input voltage, which provides stable and safe power distribution for architectural lighting.
How often can this RGB LED strip be cut?
The cutting unit is designed for every 6 LEDs, which equates to a length of approximately 71.43mm. This allows for precise customization during installation.

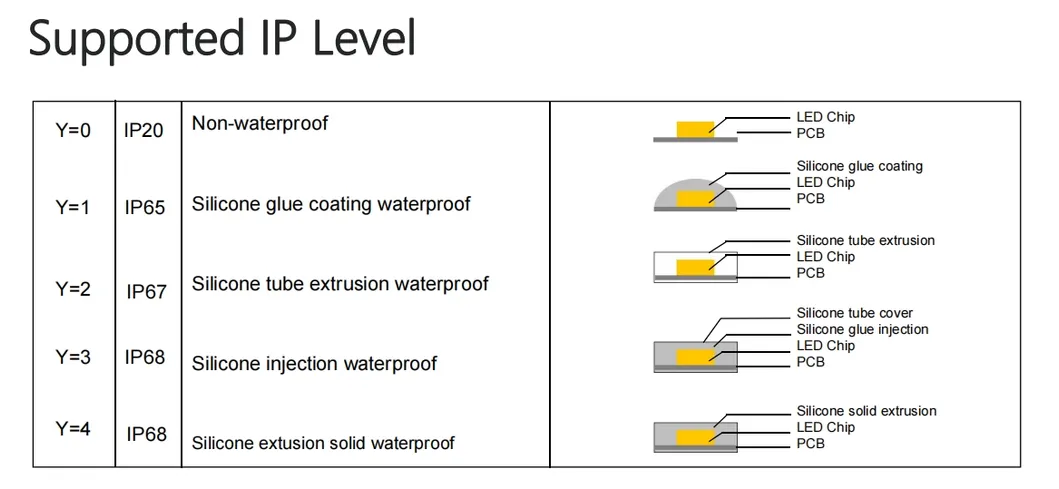

What IP ratings are available for this product?
This LED strip supports multiple IP levels, including IP20, IP44, IP65, IP67, and IP68, allowing it to be used in various environments, from dry indoor settings to fully waterproof outdoor installations.
What is the warranty period for the LED strip?
The product comes with a comprehensive 3-year warranty, ensuring long-term reliability and performance.
What certifications does the HL-505084RGB LED Strip have?
It has gained various global quality and safety certifications, including ISO9001, ETL, TUV-CE, RoHS, and SASO.
